Components of an Effective HVAC System

A well-functioning heating, ventilation, and air conditioning (HVAC) system is essential to the overall comfort and well-being of a residence. This type of Red Oak heating repair and HVAC system uses ducts connected to an outdoor unit to distribute conditioned indoor air into living spaces. A high-performance HVAC system is the result of numerous components working together. In this guide, we’ll take a look at how these essential parts come together to form a functional HVAC system.

The Importance Of An Effective HVAC System

The importance of an effective HVAC system cannot be overstated. A well-functioning HVAC system provides many benefits, including:

  • A comfortable and healthy living environment
  • Reduced energy costs
  • Protection against extreme weather conditions

These are just a few of the many benefits that come with having an effective HVAC system in your home. To ensure that there is the proper operation of all HVAC system components, it is essential to ensure that there are no air leaks or anything wrong with your ducts.

Air Leaks

If there are any holes in your home’s insulation, conditioned indoor air will escape, resulting in energy loss in your home’s heating and cooling systems. Air leakage causes not only increased energy costs but also a decrease in your home’s comfort level. A smoke pencil or an incense stick can be used to detect air leaks. You have an air leak if you see smoke coming in through windows and doors.


If your ducts are not properly sealed, there is a good chance that they will have air leaks. You can do a visual inspection of your ducts by simply looking at them to see if you notice any holes in the metal or insulation around them.

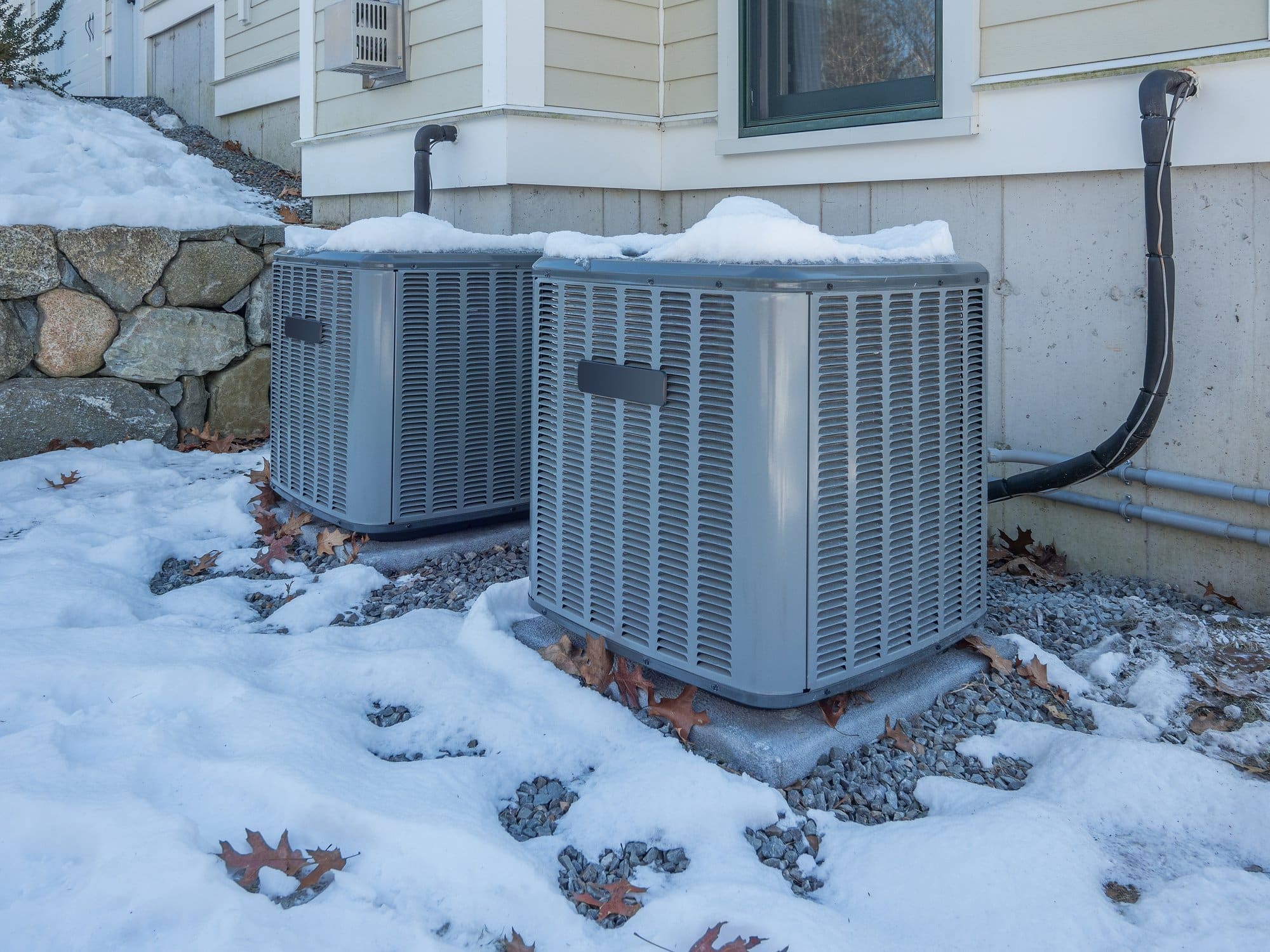

The Outdoor Unit

Assume you have an older unit that is subject to severe weather. In that case, corrosion and rusting are likely to cause damage because metal contracts in colder temperatures and expands in hot temperatures. Make sure your outdoor unit is properly protected from the elements by having it inspected by a professional.

The Indoor Unit

In addition, you should also have a professional inspect your indoor unit. The evaporator coil and the blower motor are two of the most important components in the indoor unit, as they can easily become dirty and clogged with dust, pet hair, and other debris. When these components become dirty, they can’t work as efficiently, which results in decreased performance and increased energy costs.

Here are five main components that are needed to run a great air conditioning system in your home:

The Furnace Or Boiler

The furnace or boiler, which produces hot water for your radiant flooring, baseboard heating, or air handlers, is the first component. The furnace is also in charge of the combustion process that heats your home’s air.

The furnace or boiler is necessary because it provides heat to the interior of your home. Increasing the size of your furnace or boiler is an effective way to improve its performance. Insulating the unit can help reduce drafts and lower operating costs for this system component.

The Evaporator Coil

The evaporator coil is one of the most important parts of your HVAC system because it cools and dehumidifies the air as it passes over the coils. The evaporator coil is also in charge of distributing heated air throughout your residence.

The evaporator coil is critical to an efficient HVAC system because it contributes to a comfortable and healthy living environment. The coil’s ability to cool and dehumidify the air passing over it aids in the removal of moisture from the air, which can aid in the reduction of mold and bacteria growth in your home.

The Condenser

The condenser is located outside your home, and it’s responsible for cooling the hot refrigerant gas created by the compressor in the previous step. The cooled refrigerant gas is then pumped back into the evaporator coil to start the process all over again.

The condenser transfers heat from the refrigerant gas to the outside air. The cool air that’s produced helps lower humidity levels and provides a more comfortable living environment in your home.

The Thermostat And The Airflow Sensor

A programmable or non-programmable digital thermostat that regulates your indoor temperature, humidity levels, air quality, and ventilation settings from anywhere in your home with an internet connection controls an efficient HVAC system. The airflow sensor is a second component of the HVAC system. This component is in charge of measuring the air quality in your home in order to improve its overall comfort or energy efficiency.

A thermostat is essential for maintaining a comfortable and healthy living environment. The thermostat’s ability to control your indoor temperature, humidity levels, air quality, and ventilation settings from anywhere in your home with an internet connection can help your HVAC system perform better overall.

An airflow sensor monitors the quality of air in your home in order to improve its overall comfort or energy efficiency. This component is also in charge of detecting potential leaks in an HVAC system’s ducts. The airflow sensor detects carbon monoxide and other dangerous gases such as radon, which can be harmful to your health, using a laser beam.

The Air Filters And Other Components

An efficient HVAC system also includes a number of smaller but equally important components, such as the air filter, which prevents dirt particles from clogging your evaporator coil and allowing it to function properly. An automatic drain pan, a blower motor, and refrigerant lines are also important features.

An air filter is essential for maintaining a comfortable and healthy living environment by preventing dirt particles from clogging your evaporator coil and preventing the system from working properly. The automatic drain pan is also important for maintaining good airflow throughout your HVAC system, which will keep the equipment running smoothly for years to come.

The blower motor is a component of an HVAC system that is responsible for moving air throughout your home by creating airflow with a series of belts and pulleys. The refrigerant lines are also critical because they are made of copper tubing with cut-resistant insulation, which helps keep the evaporator coil from freezing in cold weather.

Red Oak Heating Repair

The most effective HVAC systems are made up of multiple components that work in tandem to create a system with high-performance capabilities. These key components include an evaporator coil, a condenser, a thermostat and airflow sensor, air filters, and other smaller but equally important components. By understanding the importance of each component and how they work together, you can improve the overall performance of your HVAC system.
